PTFE Alternative
The 85% air composition of AeroZero® results in a low dielectric constant & low loss properties, thus making AeroZero a perfect replacement for PTFE.

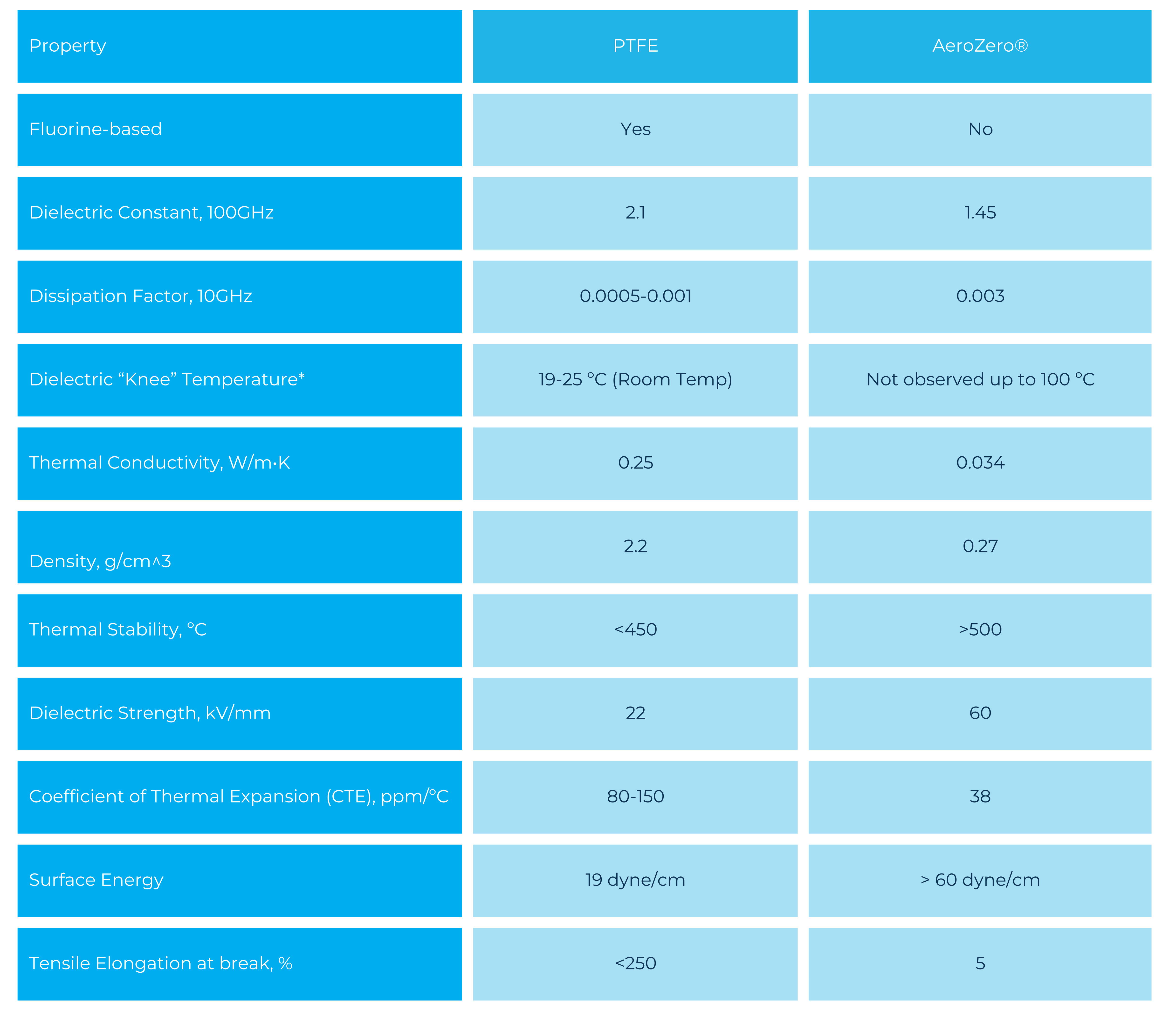

PTFE vs AeroZero®
*sharp phase change in PTFE, impacts dielectric properties
The dielectric constant of AeroZero is 1.45, vs the dielectric constant of PTFE is 2.1. A lower dielectric constant is helpful for many PCB and coaxial cable applications.
The dielectric properties of PTFE change at room temperature due to the conformational change in the PTFE polymers with temperature. This does not happen with AeroZero, resulting in very stable dielectric properties with changes in temperature.
PTFE begins to decompose at 260 ºC, and releases toxic hydrofluoric acid fumes at 350 ºC. AeroZero is stable to much higher temperatures.
PTFE is known for it’s low surface energy and slippery nature, which makes it very difficult to bond to. AeroZero is known for having a very high surface energy and a CTE nearer to that of common metals.
Dielectric Constant Performance Pyramid
Click to enlarge the image
Tg's of Common PCB Materials
Click to enlarge the image
Ready To Say Goodbye To PTFE For Good?
Join us in ushering in a new, safer, era of technology.
