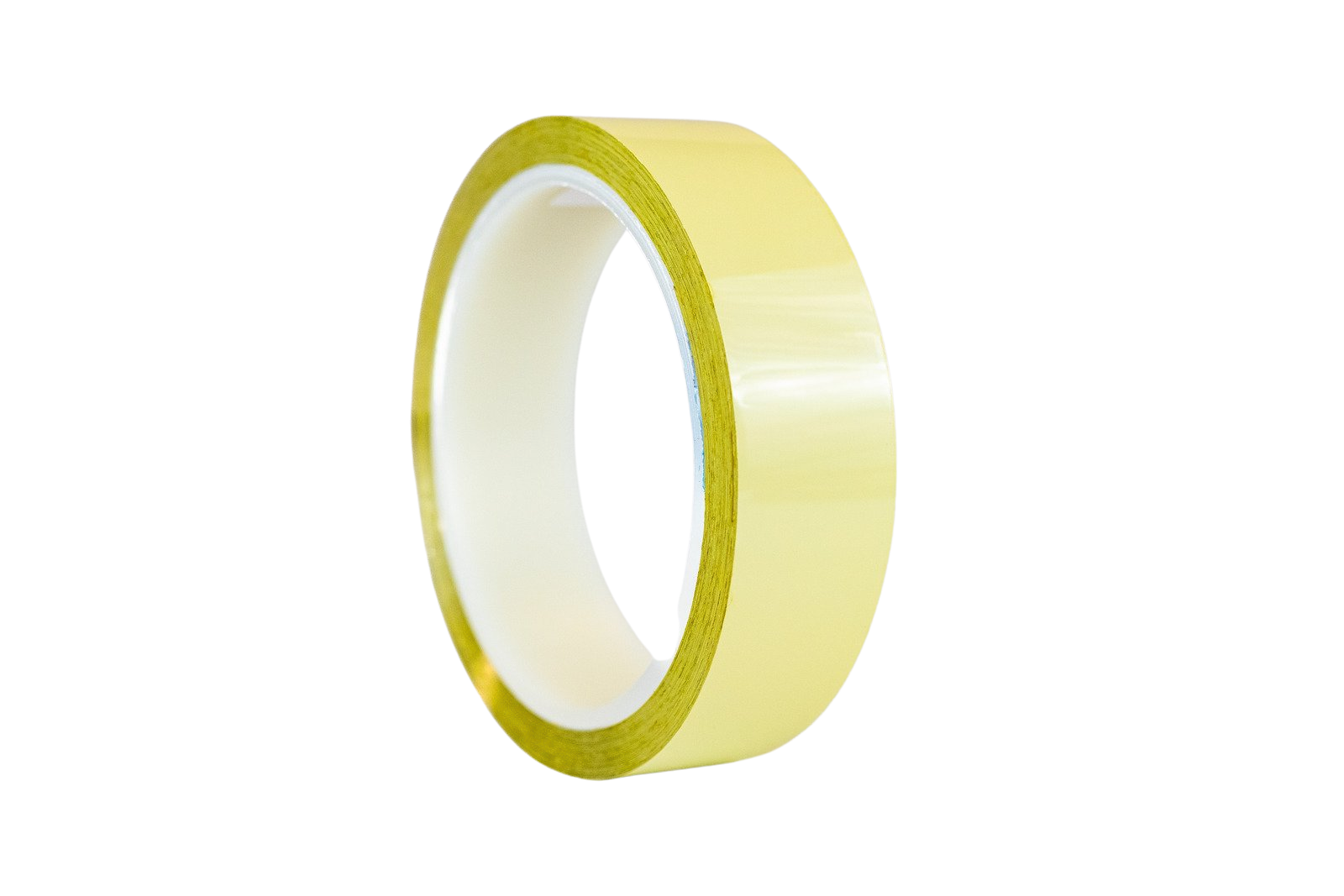

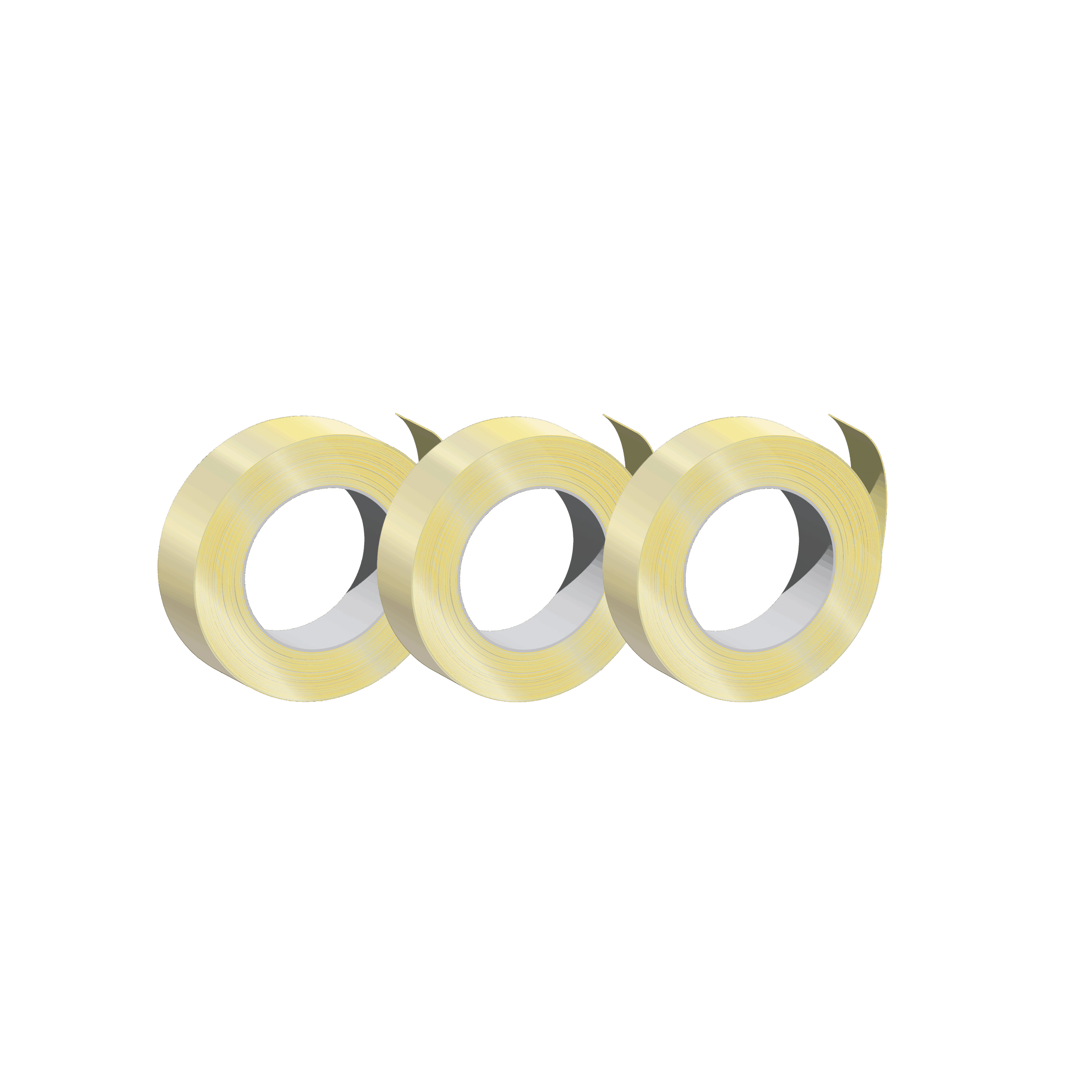

AeroZero VDA Polyimide Tape

AZ-VDA PI Tape 100 consists of a 165 micron (6.5 mil) AeroZero® polyimide aerogel film with a 25.4 micron (1 mil) external polyimide film joined with a 25.4 micron (1 mil) adhesive. The polyimide film is coated with a highly reflective layer of 1000 Å Vapor Deposited Aluminum (VDA). The opposite side has a 25.4 micron (1 mil) adhesive layer for bonding to substrates. The adhesive is a high-performance engineering grade silicone pressure sensitive adhesive (PSA) with a release layer that is peeled off before application. Potential substrates include stainless steel, aluminum, glass, and polymer substrates such as polyimides, polyether ketones, polyurethanes, and polyesters. Typical use is thermal barrier/protection of parts in the Aerospace, Defense and Electronic industries.

$89.99

Description

Product Description

AZ-VDA PI Tape 100 consists of a 165 micron (6.5 mil) AeroZero® polyimide aerogel film with a 25.4 micron (1 mil) external polyimide film joined with a 25.4 micron (1 mil) adhesive. The polyimide film is coated with a highly reflective layer of 1000 Å Vapor Deposited Aluminum (VDA). The opposite side has a 25.4 micron (1 mil) adhesive layer for bonding to substrates. The adhesive is a high-performance engineering grade silicone pressure sensitive adhesive (PSA) with a release layer that is peeled off before application. Potential substrates include stainless steel, aluminum, glass, and polymer substrates such as polyimides, polyether ketones, polyurethanes, and polyesters. Typical use is thermal barrier/protection of parts in the Aerospace, Defense and Electronic industries.

Application

Prior to peeling the release liner from the adhesive, ensure the surface is clean and free of loose particles. Standard application temperature is 25 °C (77 °F) and the recommended set time for optimal adhesion is 3 days prior to testing. The minimum application temperature is 10 °C (50 °F) and minimum set time is 24 hours before performing any tests. Increasing temperature and dwell time may increase adhesion strength.

Features

Ultra-thin thermal protection system (TPS)

Flexible application onto complex parts

Easy application with permanent bonding

Flame retardant

High reflectivity

Lightweight

Standard Dimensions

Test Sample: 216 x 280 mm (8.5 x 11 in)

Sample Roll: 304 mm x 3.05 m (1 x 10 ft)

Standard Roll: 304 mm x 30.5 m (1 x 100 ft)

Storage

Recommended Storage Conditions:

Temperature: below 25 °C (77 °F)

Relative Humidity: below 50%

Additional information

Weight 0.333 lbs
Dimensions 4.38 × 3 × 1 in
